LSF

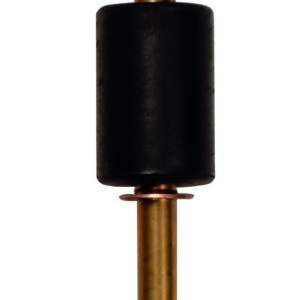

Float level switch with flange

Material: flange with anodized aluminum and stem in brass and stop rings in bronze.

Maximum working temperature: 80°C (176 F).

Floating element: NBR.

Features: the hermetically sealed reed switch housed inside the stem is actuated by a magnetic field created by a magnet equipped float. As the float rises and lowers with liquid level, the magnetic field passing the switch in the stem causes the switch to either open or close.

Documentation

Additional information

abstract

Indicatore livello olio
