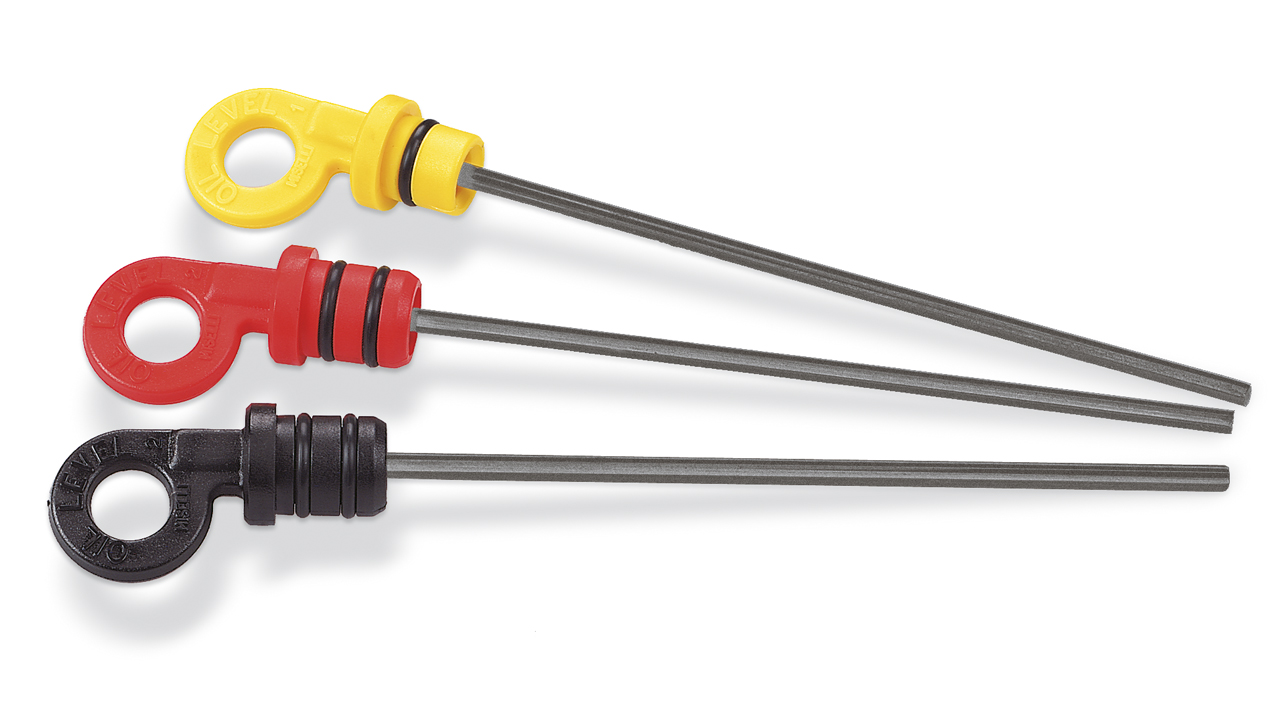

AL/1 – ALS/1 – AL/2 – ALS/2 – AL/FLEX
Asta di livello
Materiale: Poliammide 66.
Temperatura max: 100°C.
Guarnizione di tenuta: O-Ring NBR 70 Shore
Optionals: versione con sfiato /S; versione con due O-Ring di tenuta /2; versione con astina di livello flessibile a sezione piatta con trattamento superficiale di fosfatazione allo zinco e incisioni laser /FLEX.
Documentazione
- Informazioni aggiuntive
Informazioni aggiuntive
| abstract | Aste di livello |
|---|
Articoli & 3D
| COD | F | 3D | Catalogo |
|---|---|---|---|
| AL/1/14 - ALS/1/14 | 14 | Download | https://www.misellisrl.com/wp-content/uploads/3D/AL_1_14.stp |
| AL/1/18 - ALS/1/18 | 18 | Download | https://www.misellisrl.com/wp-content/uploads/3D/AL_1_18.stp |
| AL/1/20 - ALS/1/20 | 20 | Download | https://www.misellisrl.com/wp-content/uploads/3D/AL_1_20.stp |
| AL/1/30 - ALS/1/30 | 30 | Download | https://www.misellisrl.com/wp-content/uploads/3D/AL_1_30.stp |
| AL/2/12 | 12 | Download | https://www.misellisrl.com/wp-content/uploads/3D/AL_2_12.stp |
| AL/2/14 - ALS/2/14 | 14 | Download | https://www.misellisrl.com/wp-content/uploads/3D/AL_2_14.stp |
| AL/2/18 - ALS/2/18 | 18 | Download | https://www.misellisrl.com/wp-content/uploads/3D/AL_2_18.stp |
| AL/2/20 - ALS/2/20 | 20 | Download | https://www.misellisrl.com/wp-content/uploads/3D/AL_2_20.stp |
Materiale esemplificativo non vincolante
